Adjustable GEARED Trolleys
• By Kleton
• Safety plate included


Fits I Beams:
• 3-1/2" - 6-5/8"

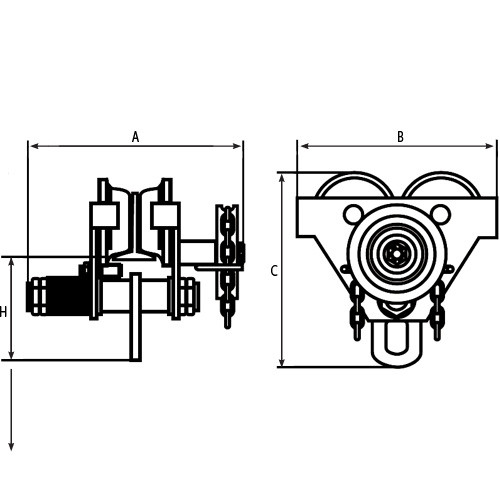

Specifications:
• Min. Curve Radius: 51-3/16"
• A: 13-3/8"
• B: 11-1/2"
• C: 11-3/4"
• H: 7-31/64"

Capacity:
• 6000 lbs

Weight:
• 54 lbs


Other Features:
• Easily adjusts to fit various flange and I-beams
• Use on straight or curved track
• Installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Two geared wheels operated by hand chain
