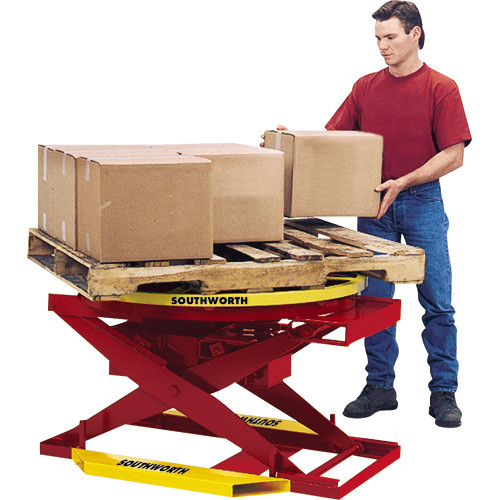

Air Level Loaders
• PalletPal by Southworth


Base Dimensions:
• 48" long
• 36" wide
• Incl fork truck pockets

Lowered Height:
• 9-1/2"

Raised Height:
• 30-1/2"

Capacity:
• 400 - 4500 lbs

Weight:
• 460 lbs


Other Features:
• Designed for use where pallet loads vary & are changed frequently
• 43-5/8" diameter rolled angle ring riding on low friction bearings and guided by center shaft
• Permanent spring combines with air bag to provide linear response
• Equipped with fork pockets for easy relocation
