Adjustable PLAIN Trolleys
• By Kleton
• Safety plate included


Fits I Beams:
• 2-11/16" - 5"

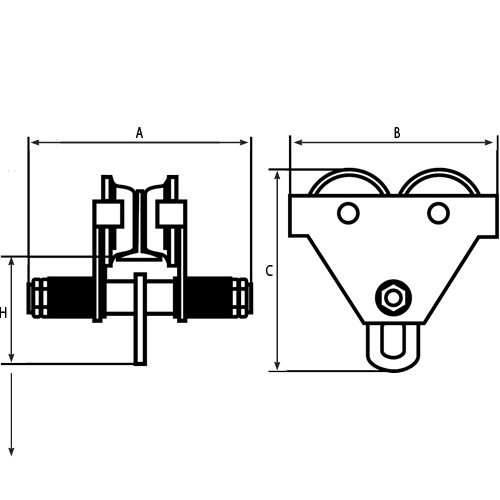

Specifications:
• Min. Curve Radius: 35-7/16"
• A: 8-3/16"
• B: 8"
• C: 7-3/8"
• H: 4 -59/64"

Capacity:
• 1000 lbs

Weight:
• 10 lbs


Other Features:
• Easily adjusts to fit various flange and I-beams
• Use on straight or curved track
• Installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
