Adjustable PLAIN Trolleys
• By Kleton
• Safety plate included


I-Beam Flange Width:
• 4-13/16" - 8"

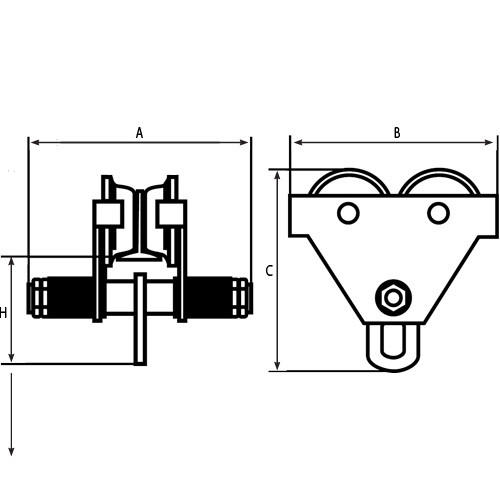

Specifications:
• Min. Curve Radius: 66-15/16"
• A: 13-1/2"
• B: 13-3/4"
• C: 13-3/8"
• H: 8-37/64"

Capacity:
• 10,000 lbs

Weight:
• 73 lbs


Other Features:
• Easily adjusts to fit various flange and I-beams
• Use on straight or curved track
• Installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
